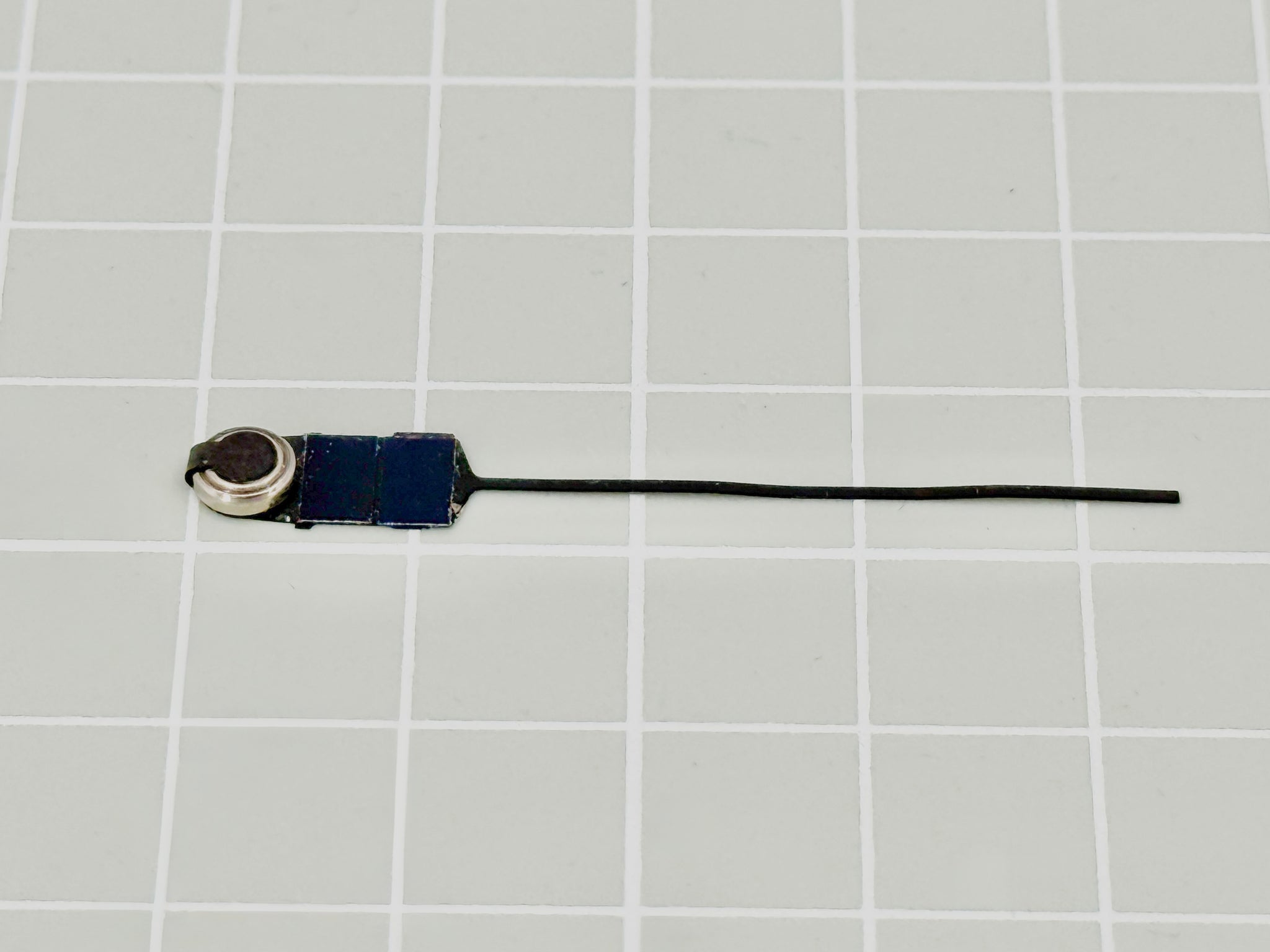

BlūBird – Solar-Rechargeable 2.4GHz Radio Tag for Round-the-Clock Tracking

The BlūBird is CTT’s newest innovation in ultralight tracking: a hybrid, solar-rechargeable 2.4GHz digitally-coded radio tag that combines the proven solar technology of the BlūMorpho with a high-efficiency rechargeable battery. This allows the tag to transmit continuously—day and night—even through multiple days of low light. With just a few hours of sunlight, BlūBird stays fully charged and transmits every 3 seconds. All in a base weight of just 0.2g.

---

Key Specifications

• Weight: 0.2 g (base weight)
• Transmission Interval: 3 seconds (standard; configurable upon request)
• Power Source: Solar panel + rechargeable battery
• Transmission Frequency: 2.4 GHz
• FCC ID: 2AY2B-BTGPT
• Industry Canada ID: 32683-BTGPT

---

Transmitted Data

Tag transmissions contain different data depending on how the tag is detected:

• Via CTT Infrastructure (SensorStations, Nodes, Sidekicks, Motus-enabled towers):
  • Unique Digital ID
  • Timestamp
  • Signal Strength (RSSI)
  • Radio Channel Detected
  • Sensor Data Packet: Battery Voltage (V) and Temperature (°C)
• Via Blū+ Network (IoT-connected devices and passively listening smartphones):
  • Unique Digital ID
  • Timestamp
  • Approximate Latitude & Longitude
  • Detection Confidence Value

---

Hardware Features

• Hybrid solar-rechargeable design for 24-hour operation
• Optimized for high-frequency transmission (3 sec default)
• One-piece design with integrated antenna
• Fully coated and sealed for long-term deployment
• Magnet activation—no activator required

---

Available in Two Variants

1. BlūBird Standard

• Compatible with all CTT infrastructure (SensorStations, Nodes, Sidekicks, Mobile App)
• Optional Motus registration available separately ($20 per tag)
• Ideal for localized or receiver-based studies

2. BlūBird Expanded (with Blū+)

Includes everything in the Standard variant, plus:

• Blū+ Detection Service
  Enables detection across CTT’s broader IoT-connected network—including passively listening smartphones and third-party receivers
• Prepaid Motus Registration ($20 value included)
• Tag is searchable every 5 minutes while Blū+ is active

Note: Blū+ requires a $2/month data plan per tag and must be selected at the time of purchase. It cannot be added after shipment.

---

Why Choose BlūBird?

BlūBird brings unprecedented flexibility to lightweight tracking. With a self-charging hybrid design and high-frequency transmission rate, it delivers detailed behavioral and movement data around the clock—even when sunlight is limited. Combined with CTT infrastructure and Blū+ cloud-based detection, it’s a powerful tool for studying migration, stopovers, habitat use, and survival in the smallest avian species.

• True 24-hour detection with solar-backed battery reserve
• High-frequency beeping (3 sec) without shortening lifespan
• Broad detection coverage via both traditional and smart device networks
• Motus integration included with Blū+ variants

---

Pricing Summary

Variant	Includes	Additional Cost
BlūBird Standard	CTT detection; optional Motus registration ($20)	Base price
BlūBird Expanded	CTT detection + Blū+ service + prepaid Motus registration	+$25 per tag

Blū+ Data Plan: $2/month per tag (managed through the BlūSeries Tag Portal)
