2.4GHz Digitally-coded Radio Tag - now in a Leg Band (Ring) Form Factor!

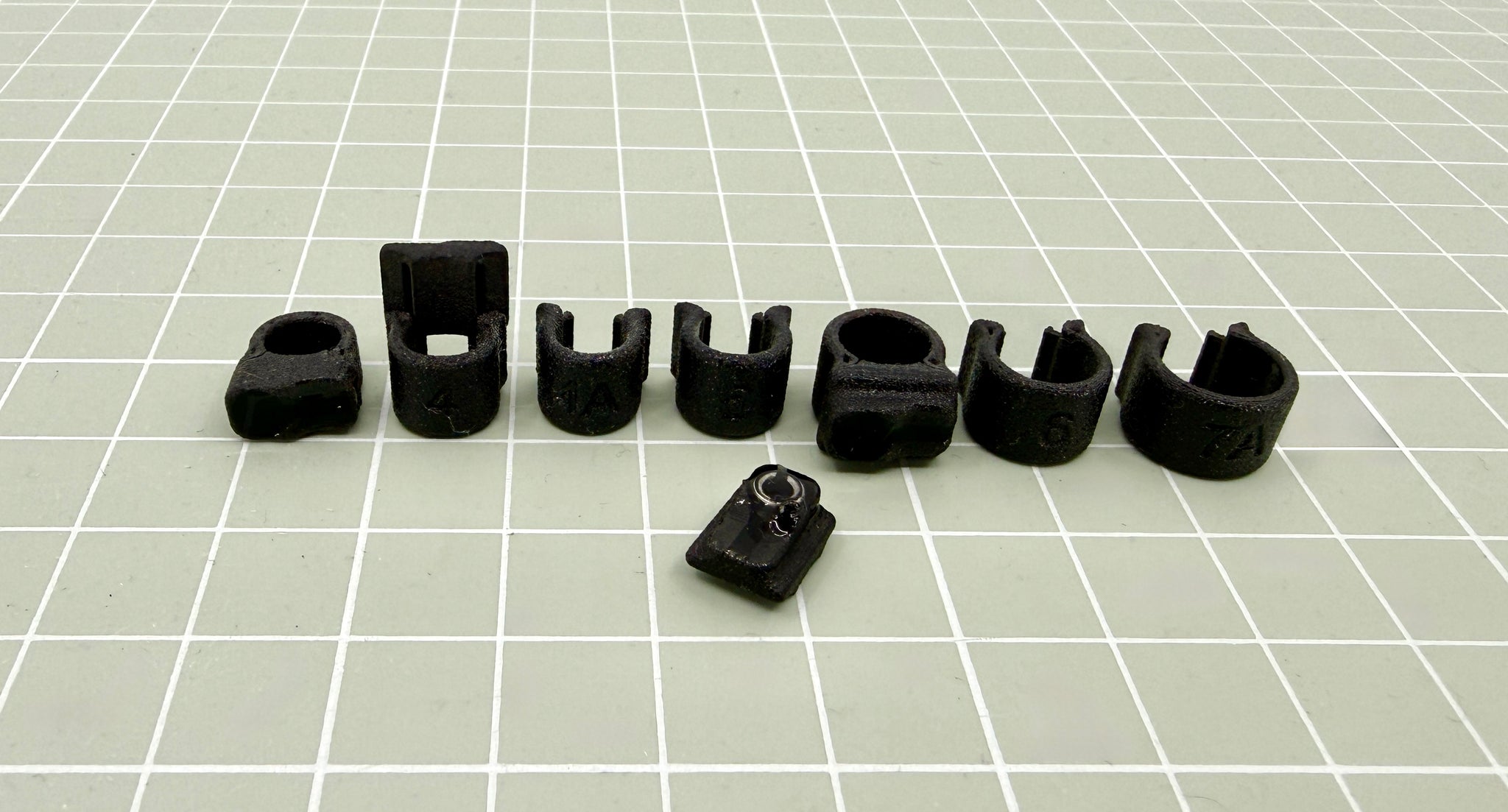

We took our smallest-in-class battery-only digitally-coded transmitter, swapped out the whip antenna for a new chip antenna we designed in-house, and put it all into a self-locking leg band form factor for simple attachment and release. The current version is buildable down to a ~size 5 (USGS Bird Banding Laboratory standards) band, with a total height of 19mm and inner dimensional cross section of 6.4 x 8.4mm. The oval shape better conforms to the leg of a bird while allowing for a sliding and locking door to close the band.

Features

• Tiny form factor

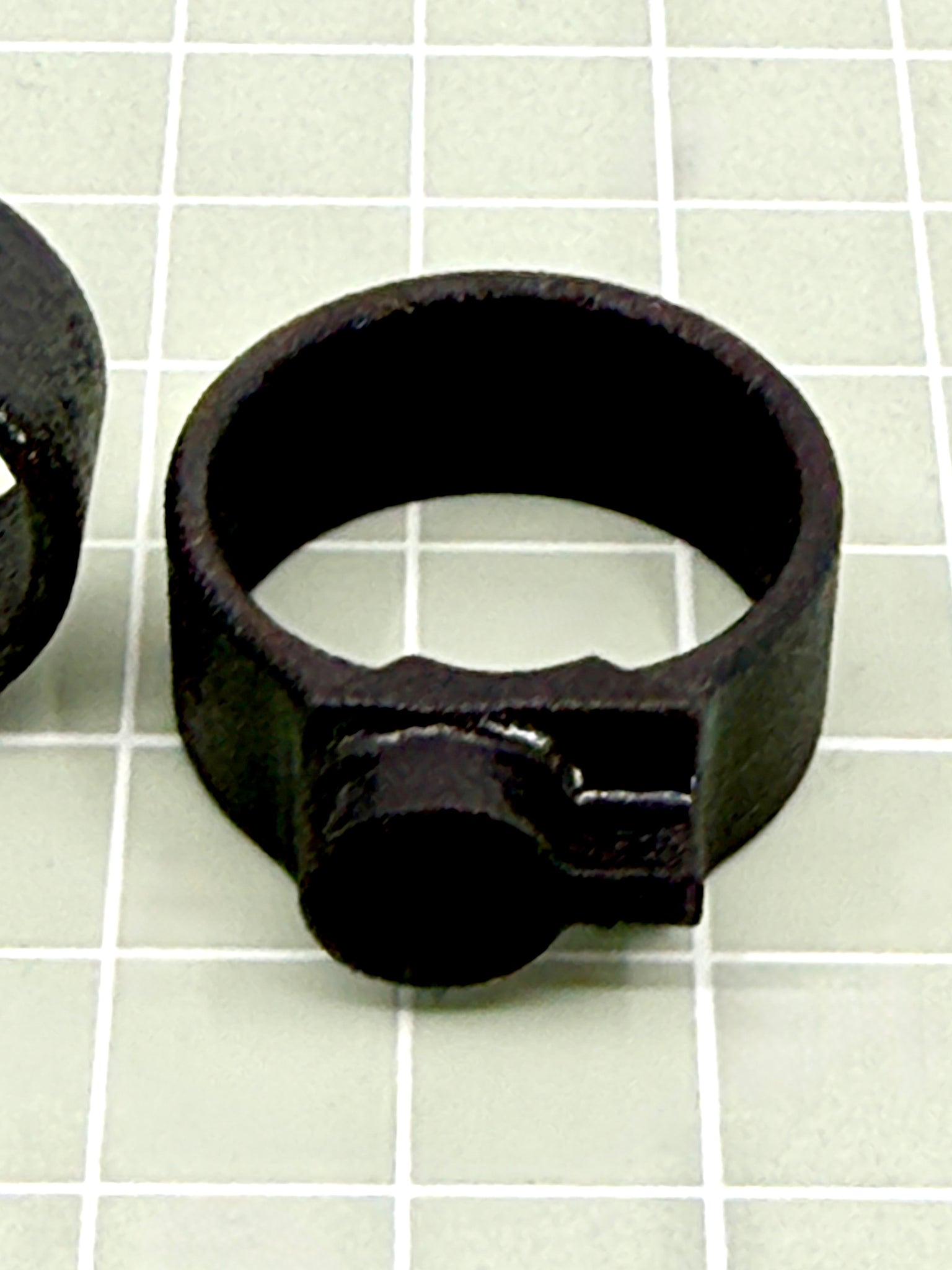

• Size 5 (pictured) = 19mm high x 11-13.3mm wide (outer measurements); Inner cross section = 6.4mm x 8.4mm.
• Weight (pictured) = 1.1g
• Transmits at 3, 5, 10, 20, 30 or 60 sec. beep intervals
• Compatible with BlūSeries Receiver, CTT Node V3, CTT Sidekick and CTT Mobile app.
• Testing pad for testing transmission and checking battery voltage prior to deployment.
• One-piece design with integrated Chip antenna.
• Fully coated for long-term deployment.
• No activator needed- just cut to activate, seal with a drop of super glue, and release!
• Motus compatible.

Data packet includes
• Digital ID
• Battery Voltage
• Signal Strength (RSSI)

Technical Specs

Dimensions: see above
Weight of Transmitter + Band: 1 +/- 0.2 grams
Transmission Frequency:
2.4GHz

Estimated Lifespan Based on User-Defined Beep Rate for Size 5 BlūBat Leg Band

Beep Rate (sec)	Lifespan (days)
3	125
5	197
10	343
20	547
30	682
60	905



Motus Compatible

FCC ID: 2AY2B-BTGPT

Industry Canada ID: 32683-BTGPT
